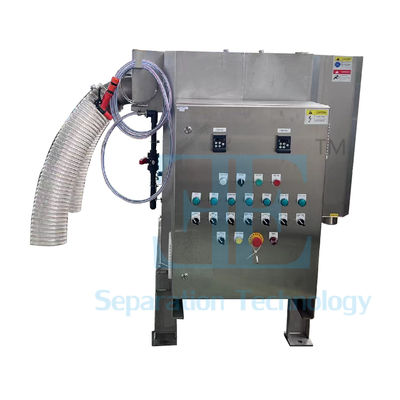

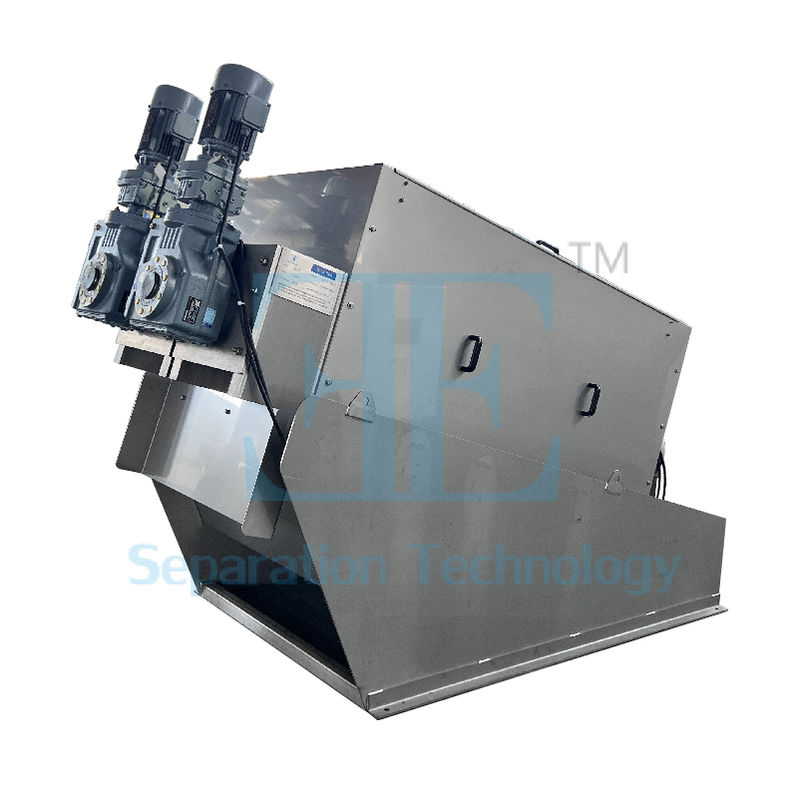

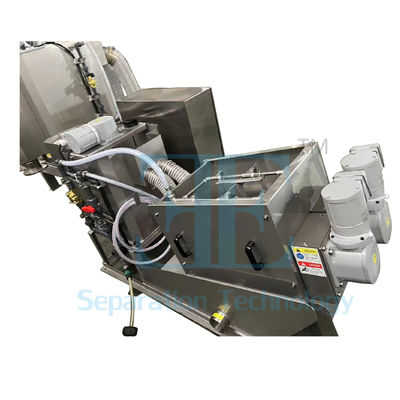

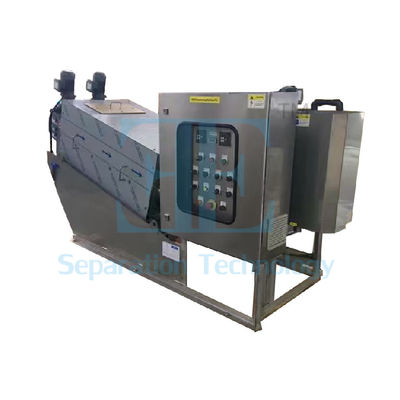

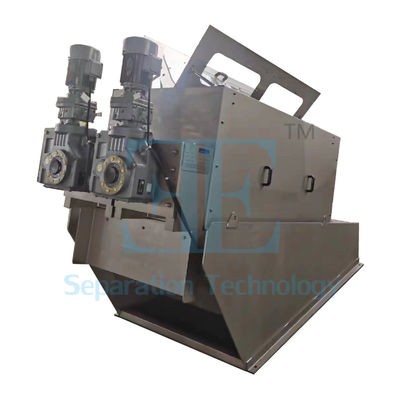

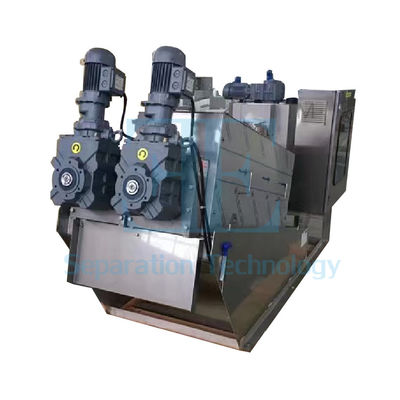

Industrial Screw Press Sludge Dewatering Machine 3.6-45m3/h Capacity

The screw press offers high efficiency, low energy consumption, fully automatic control and stable operation. It directly and continuously reduces water content from secondary settling tanks, producing dewatered sludge with stable moisture content between 70-85%. Its compact design reduces capital investment, saves floor space, minimizes odor and phosphorus release, and significantly improves the capacity of subsequent deep dewatering equipment.

1. Conditioned sludge flows into the filter chamber from the flocculation tank and is pushed toward the discharge end.
2. As the gap between shaft threads increases, water separates from sludge and flows out through moving and fixed ring gaps.
3. Movement of rings automatically cleans gaps, preventing machine blockage.
4. Filtered sludge cakes are pushed forward by the shaft and discharged at the end.

When thickened sludge moves to the dewatering zone, the gaps between rings and screw pitch gradually narrow, increasing pressure and enhancing the dewatering process.

• Simple process with high efficiency, power saving, and low investment
• Programmable settings for convenient and accurate operation
• Precise chemical preparation and dosage reduces operational costs

• Compact Design: Requires minimal installation space compared to other technologies
• No Blockage: Self-cleaning mechanism handles oily sludge without clogging
• Cost Efficient: Consumes only 0.1-0.01kwh/kg-DS (1/8 of belt filter press)
• Automated Operation: No filter clothes required, easy to operate via electric control cabinet
